ProtectaMesh™ HD rockshield mesh, manufactured by TYPAR, is a heavy duty pipeline mesh that protects pipeline coatings from rock backfill. ProtectaMesh HD rocksheild is essential for projects installed in rocky terrain, offering high compression strength and resistance to destruction during and after the backfill process.

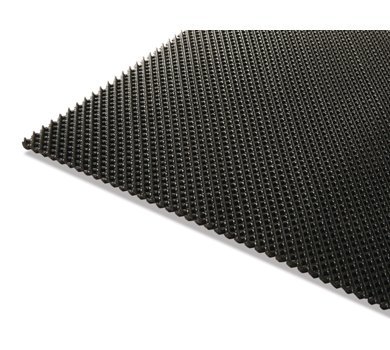

ProtectaMesh HD rockshield is manufactured to a consistent thickness that provides full width protection, minimizing pipeline coating damange (holidays) and the resulting corrosion. The mesh is a three-dimensional bi-planar extruded diamond structured mesh made from a high-density polyethylene.

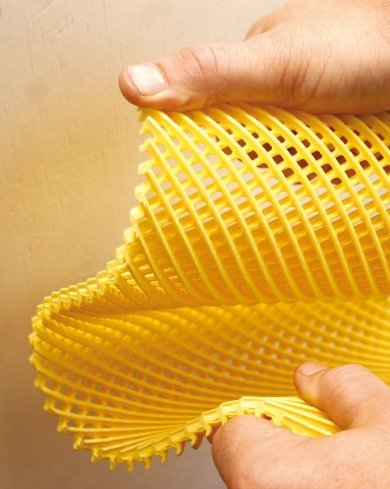

The open design allows for free movement of water around the pipe for cathodic protection. It is flexible, allowing for ease of installation at low temperatures and it is chemically inert, resisting rot.

ProtectaMesh HD rockshield offers better impact resistance, greater tensile strength and higher compression strength and is half the weight of the competition.

• Supplied in pads (cut pieces) or rolls for ease of installation
• Supplied in five or six foot widths

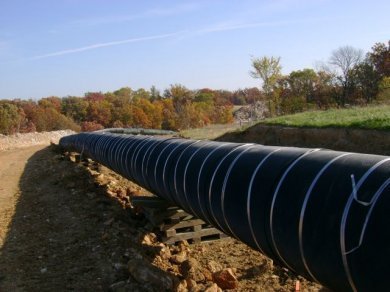

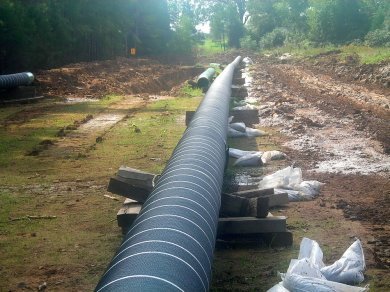

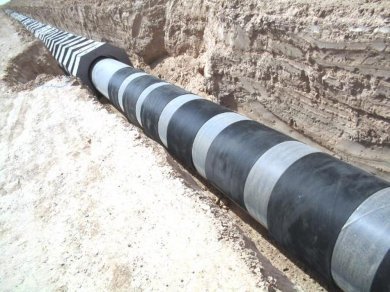

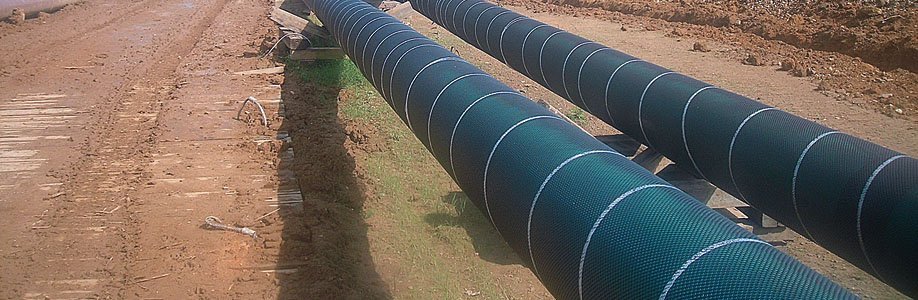

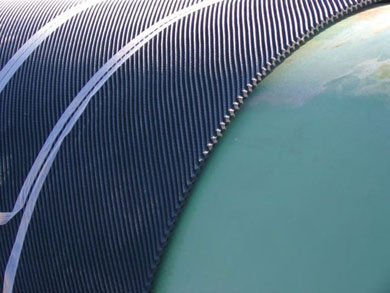

ProtectaMesh HD rockshield pipe protection mesh can be installed in three methods using either ‘Longitudinal wrapping’, ‘Latitudinal wrapping’ or ‘Spiral wrapping’ and secured by means of polypropylene strapping.



Technical Data - Physical Characteristics

Physical CharacteristicsData / Measurement
StructureDiamond Mesh
PolymerPolyethylene
ColorBlack
Width4ft, 5ft or 6ft)
LengthRolls or Pads as required
Weight0.32lb/ft²
Aperture Size0.16" x 0.16" nominal


Technical Data - Technical Characteristics

MeasurementResultsTest Method
Elongation at Max Strength (MD)139%ASTM D4595
Elongation at Max Strength (TD)110%ASTM D4595
Tear Strength (MD)15.0lbsASTM D624
Tear Strength (TD)16.2lbsASTM D624
Tensile Strength44.6lbs/inchASTM D4595
Impact Strength141.9 inch/lbs.ASTM G14 spherical point
Impact ResistanceNo Failure at 6" rock
ASTM G13 MOD
Compressive Strength620kPa / 90 psi (50% compression)ASTM D1621
Melt Temperature108°C / 226.4°FASTM E794
Freeze DataNo failure -34°C/-30°F (180° Bend)CUSTOM
Cathodic ProtectionNo inhibiting effectCUSTOM
All the above information is given in good faith, but the figures are typical values only and should not be taken as a guarantee of performance. Manufacturing tolerances for dimensional and technical characteristics apply and are available on request.
